Clear Float Glass
float glass factory
jumbo size glass
clear glass

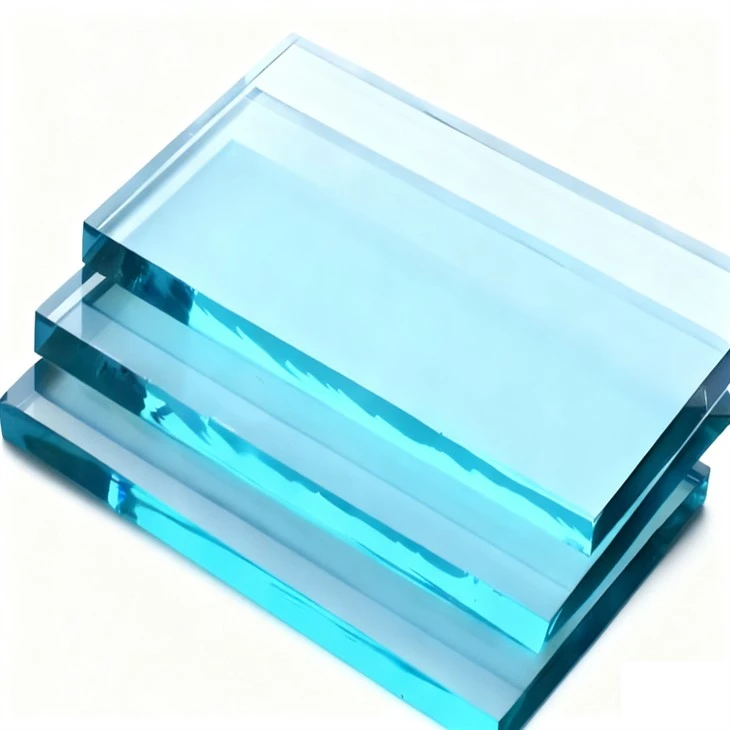

Clear Float Glass

Clear float glass also called soda lime glass or annealed glass or window glass or flat glass is produced by mixed silica sand, soda ash, limestone, dolomite and other raw material.
Ultra thin thickness: 0.8mm,1.0mm,1.3mm,1.6mm,1.8mm,2mm
Normal thickness: 3mm,4mm,5mm,5.5mm,6mm,8mm,10mm,12mm
Ultra thick thickness:15mm, 19mm,22mm
Size: 700x900mm 1220x1830mm 1830x2440mm 2440x3660mm
Jumbo size: 3300x5100mm/6000mm/7000mm/8000mm/10000mm

Send Inquiry

Product Introduction

Products Description

Clear Float Glass is a type of flat glass that is produced by floating molten glass on a bath of molten metal (typically tin) to achieve an even and consistent thickness, and flat surface. In the manufacturing process of float glass, raw materials are melted to create a continuous sheet of hot glass, which is then gradually cooled under controlled conditions to ensure an even distribution of stress in the annealed glass. This optimized annealing process facilitates easy cutting of the float glass during subsequent processing stages. With its excellent light transmittance, Clear Float Glass offers a clear and undistorted view, allowing you to connect with the natural surroundings while also providing protection from external elements.

The glass is widely used in architectural, interior and various glass processing such as windshield, mirrors, Acid etched glass, tempering, laminate, DGU and so on.

If you are looking for the cheaper option and the edges doesnot matter with green edge, than clear glass works great for your project.

Specification

Product name	Clear float glass, Annealed glass, soda lime glass, Window glass, Flat glass
Thickness	1.1mm,1.3mm,1.6mm,2mm,3mm,4mm,5mm,6mm,8mm,10mm, 12mm, 15mm, 19mm,22mm,25mm
Common size	700x900mm,1220x1830mm,2140x3300mm, 2440x36600mm,2440x3300mm, 2140x3660mm,1830x2440mm,3300x5100mm,3300x18000mm
Fabrication	Cutting or drilling available before glass tempered, and tempered glass can be laminated,printed and back-painted.
Standard	GB11614-2022,ANSI Z97.1;EN572; GOST 111-2001

Glass Features

The clear glass is easy to clean, can be tempered and laminated, and has high transparency.

Produced using the float glass manufacturing process, clear float glass has uniform thickness throughout, ensuring consistency and structural integrity.

Clear float glass can be further processed, including cutting, drilling, polishing, tempering, laminating, and coating, to meet specific design and performance requirements.

The clear glass comes in multiple thicknesses: This is the best product for applications where you will want to see through the glass with no color distortions. For example, shop windows, store fronts; jewelry cases; regular windows, malls; offices, restaurants, businesses, hotels, banks, houses, and more!

Glass Benefits

Natural Light

Clear float glass maximizes natural light penetration, creating bright and inviting spaces while reducing the need for artificial lighting and energy consumption.

Design Flexibility

Its versatility allows for various processing options, making clear float glass suitable for a wide range of architectural designs, from sleek modern facades to traditional windows and doors.

Durability

Clear float glass is durable and resistant to scratches, chemical damage, and weathering, ensuring long-term performance and minimal maintenance requirements.

Cost-Effective

Widely available and cost-effective, clear float glass offers an affordable solution for architectural glazing and interior applications without compromising on quality or aesthetics.

Application

Windows and Façade ; Mirrors and back-painted glass;Acid etched glass; Tempered and laminated glass; Automotive glass; Coated glass such as solar-control glass and insulating glass, low-e glass.

Technical specifications

thickness Inspection Item		2mm	2.5mm	3mm	4mm	5mm	6mm	8mm	10mm	12mm	15mm	19mm
LTCof visible (370nm～800nm)		90.59	90.69	90.41	90.00	89.61	88.88	87.85	87.18	86.02	84.62	82.41
LTC of ultraviolet (300nm～390nm)		82.28	82.89	81.53	79.35	77.41	73.39	68.99	67.20	63.07	61.18	56.89
LTC of Infrared (800nm～2100nm)		85.25	85.27	83.37	80.60	77.98	73.18	69.43	66.05	60.34	50.54	41.34
LTC of Sunlight (300～2100nm)		87.70	87.77	86.66	85.00	83.43	80.50	77.91	75.77	72.10	66.26	60.13
Reflectance of visible light (370nm～800nm)		90.59	90.69	90.41	90.01	89.61	88.88	87.85	87.18	86.02	7.8	7.6
Reflectance of sunlight (300～2500nm)		82.28	82.89	81.53	79.35	77.41	73.39	68.99	67.20	63.07	6.5	6.2
Chroma coordinator	L*	96.25	96.29	96.17	96.01	95.85	95.55	95.12	94.84	93.78	92.84	94.35
	a*	-0.547	-0.554	-0.637	-0.918	-1.059	-1.511	-1.829	-2.214	-3.685	-4.961	-2.778
	b*	0.188	0.154	0.109	0.122	0.092	0.124	0.474	0.535	0.292	0.227	0.594
