Curved Tempered Glass
Of the front or back on the basis of one or more directions of the glass according to Requirement.
It has single curved tempered glass and multi-curved tempered glass.
Products Description

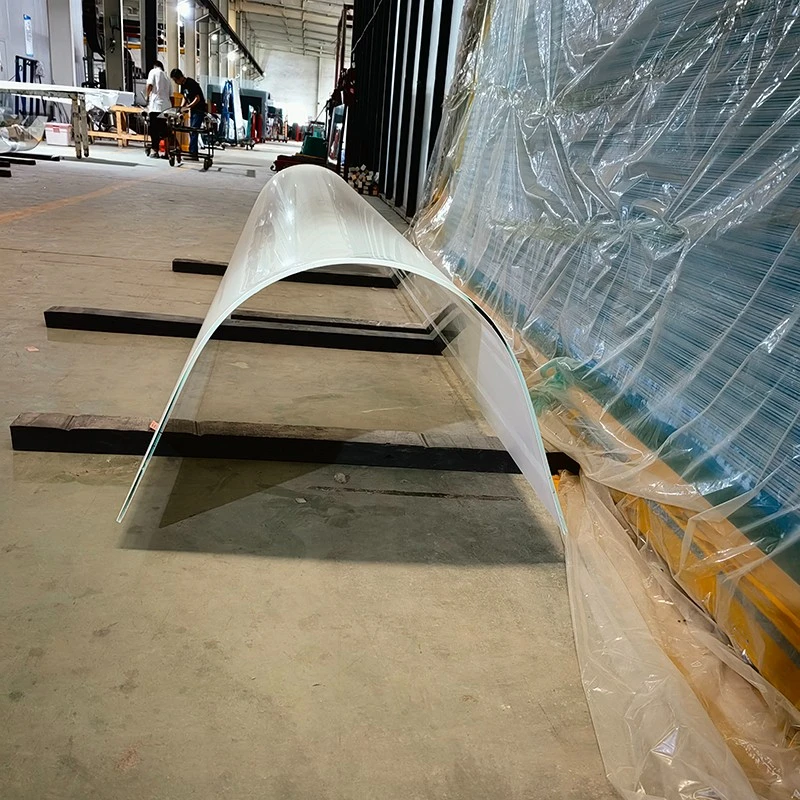

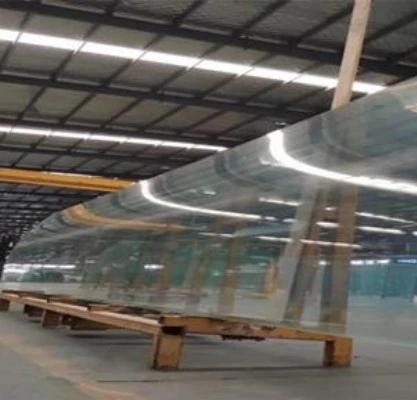

Curved Tempered Glass is a type of glass that has been heated to a high temperature and then quickly cooled to increase its strength. This process, known as tempering, creates a product that is much stronger than regular glass. The term "curved" indicates that the glass has been shaped or bent into a curved form, providing a unique and aesthetically pleasing look. Curved tempered glass is commonly used in architectural applications, such as curved windows, glass doors, and glass railings, due to its strength and safety features.

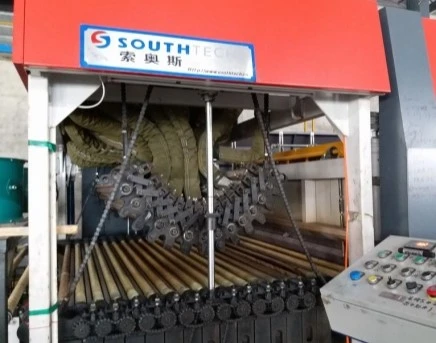

For the curved tempered glass, the annealed glass is firstly heated to over 550 °C, the glass is moved within the furnace into the bending station, where it is bent to its target radius. We can make lengthwise bending and also crosswise bending.
An essential consideration regarding curved tempered glass is that once it undergoes tempering, it becomes impossible to cut or alter. Therefore, meticulous measurements and thorough planning are crucial prior to the tempering process, as any errors or adjustments would necessitate restarting the entire procedure.

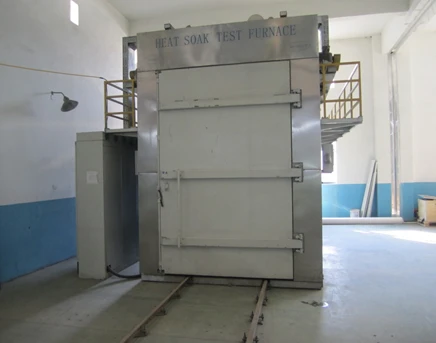

Heat Soak Test, or HST is a process that may expose nickel sulfide inclusions in tempered glass to minimize the risk of spontaneous breakages of heat-treated glass.
Heat soak testing is important for fully
tempered glass because natural nickel sulfide(NiS)in glass can cause breakage when heated by the sun. Heat soak testing simulates this heat to ensure there are no NiS inclusions!For more details follow the link!
Specification
|
Product name |
Curved Tempered Glass, bent glass,bending glass |
|
Thickness |
4-19mm |
|
Curvature Radius |
4-6mm: R≥250mm 8-10mm: R≥650mm 12mm: R≥1200mm |
|
Glass Size |
Max. 3300x12000mm; Min. 300x500mm |
|
Glass types |
Available in clear, tinted, frosted, or reflective, to meet aesthetic preferences and functional requirements. |
|
Shape |
Single curved, Multi curved |
|
Safety standard |
CE standard |
|
Package |
Plywood crates package, or customized packing |
|
MOQ |
1x20 GP |
|
Delivery time |
2-3 weeks upon receipt of deposit |
Features
Strength
Curved tempered glass is much stronger than regular glass due to the tempering process it undergoes. It is more resistant to impact and bending forces.
Safety
When broken, curved tempered glass shatters into small, blunt pieces instead of sharp shards, reducing the risk of injury.
Heat Resistance
It can withstand high temperatures, making it suitable for use in areas exposed to heat or sunlight.
Aesthetics
The curved shape of the glass adds a modern and stylish look to architectural designs, providing a unique visual appeal.
Versatility
Curved tempered glass can be used in various applications, such as curved windows, glass doors, glass partitions, and railings, offering flexibility in design.
Durability
It is more durable and long-lasting compared to regular glass, making it a reliable choice for both residential and commercial projects.
Applications
Architectural
Curved tempered glass is often used in architectural projects for curved windows, glass facades, glass canopies, skylights, and glass balustrades. Its strength, safety features, and aesthetic appeal make it a popular choice for modern buildings.
Furniture
Curved tempered glass is utilized in furniture design for items such as glass tables, shelves, cabinets, and display cases. Its durability and sleek appearance add a contemporary touch to furniture pieces.
Retail Displays
Curved tempered glass is commonly used in retail displays, showcases, and exhibition stands to showcase products effectively while providing a modern and elegant look.
Interior Design
Curved tempered glass can be incorporated into interior design elements such as room dividers, shower enclosures, staircase railings, and decorative wall panels to add a touch of sophistication and style to spaces.
Other typical applications of tempered glass include:
Balcony doors
Athletic facilities
Swimming pools
Exhibition areas and displays
