Hard Coating Low E Glass
Thickness: 3.2MM 4MM 5MM 6MM 8MM 10MM 12MM
Substrate: Clear glass, ultra clear glass (low iron glass)，ford blue glass
Size: 1830X2440MM, 2250X3300MM, 2134X3300/3660MM,2440X3660MM, 3300x6000MM
Products Description
Hard coating Low E glass also called online coating low-e glass and Save Energy Glass is applied on a substrate of clear float glass in the tin bath by a pyrolytic process called online CVD (Chemical Vapor Deposition) method. The online hard coating has stable chemical and mechanical performance with high light transmission, high durability and easy processing. Its emissivity reduce to E=0.17
Characteristic
It can be used as single glazing or may be stored for a long period of time for further procession;
High durability,easy handing and easy processing.
No film deletion and other special handling requirement for IGU;
Stable chemical and mechanical performance for solid coat, high temperature resistance, corrosion resistance, anti-oxidation and long life.

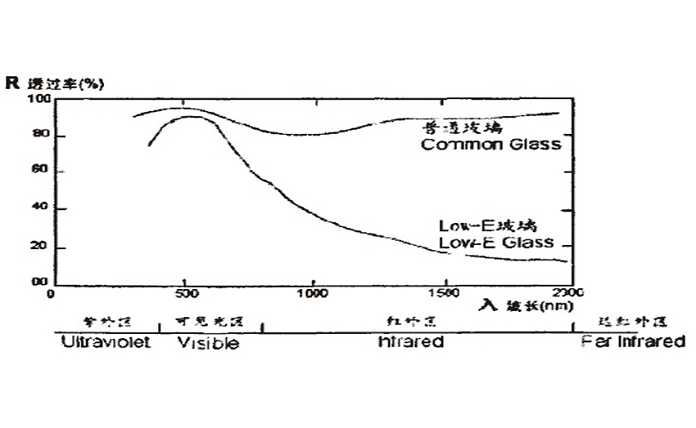

Energy Efficiency Mechanism
Specification
|
Name |
Hard coating Low E glass, online coating low E glass, Engery efficient Low E Glass, Save Energy Glass, Transmittance Low E Glass |
|
Thickness |
3.2mm, 4mm, 5mm, 6mm,8mm,10mm,12mm |
|
Substrate glass |
Clear glass, ultra clear glass (low iron glass), Ford blue glass |
|
Standard size |
1830 x 2440mm, 2134 x 3300mm, 2250 x 3210mm , 2440 x 3660mm,3300x6000mm |
|
Quality standard |
CE, GB, AS/NIS2208-1996 |
|
Further processing |
Cut size, C-edge, Beveled edge, Straight edge, etc. |
|
MOQ |
1x20' FCL |
|
Delivery time |
Within 20 days after receiving the TT or L/C at sight |
|
Application |
curtain wall, glass roof, facade, windows and doors; microwave oven, refrigerator doors, liquor cabinet, Beverage display cabinet, disinfection cabinet ,commercial display cabinets |
Application
Architecture
curtain wall, glass roof, facade, windows and doors
Industrial field
microwave oven, refrigerator doors, liquor cabinet, Beverage display cabinet, disinfection cabinet and other various commercial display cabinets
Traffic Locomotive Field
High speed train, subway and other rail train.
Optical Parameter data
Clear hard coating LOW E glass
|
Thickness |
Visible light |
Solar |
U-value |
SHGC |
SC |
||||
|
mm |
transmissivity% |
reflectivity% |
Transm issivity% |
Reflect ivity% |
winter |
summer |
|||
|
outside |
inside |
||||||||
|
4 |
83.0 |
9 |
11 |
72.0 |
12 |
3.7 |
2.8 |
0.75 |
0.86 |
|
5 |
82.5 |
10 |
11 |
71.5 |
12 |
3.7 |
2.9 |
0.74 |
0.85 |
|
6 |
82.5 |
10 |
11 |
70.0 |
10 |
3.7 |
2.8 |
0.73 |
0.84 |
|
8 |
82.0 |
10 |
11 |
69.0 |
9 |
3.7 |
2.9 |
0.72 |
0.82 |
|
10 |
81.50 |
9 |
10 |
66.0 |
8 |
3.7 |
2.8 |
0.71 |
0.81 |
Ultra clear hard coating LOW E glass
|
thickness |
Visible light |
Solar |
U-value |
SHGC |
SC |
||||
|
mm |
transmissivity% |
reflectivity% |
Transmissi vity% |
Reflecti veity% |
winter |
summer |
|||
|
outside |
inside |
||||||||
|
4 |
85.0 |
10.0 |
11.0 |
76.0 |
12.0 |
3.7 |
2.8 |
0.89 |
0.95 |
|
5 |
84.5 |
10.5 |
11.5 |
75.5 |
11.5 |
3.7 |
2.9 |
0.82 |
0.94 |
|
6 |
84.0 |
10.5 |
11.5 |
75.0 |
10.0 |
3.7 |
2.9 |
0.81 |
0.93 |
|
8 |
83.5 |
10.0 |
11.0 |
73.5 |
9.0 |
3.7 |
2.9 |
0.80 |
0.92 |
|
10 |
83.0 |
9.0 |
10.0 |
71.0 |
8.0 |
3.7 |
2.8 |
0.79 |
0.91 |
