Tempered Glass
video

Tempered Glass

Material:Tempered glass, also known as toughened glass, is a type of safety glass that undergoes a specialized thermal treatment process to enhance its strength and durability
Size: Any sizes can be customized
Thickness: 3-19MM
Shape: Flat Glass
Edgework: Flat polished edge
MOQ: 1000SQM
Send Inquiry
Product Introduction
Products Description



Tempered glass, also called toughened glass and Heat Strengthened Glass and tempered safety glass, is a type of safety glass that undergoes a specialized thermal treatment process to enhance its strength and durability. Likeway Tempered glass offers a combination of safety, strength, durability, and versatility, making it a preferred choice for a wide range of architectural, interior decorations, and industrial applications.

Processing:

Tempering process: the annealed glass should be cut to the desired size firstly,then examined for imperfections that could cause breakage at any step during tempering. Then edges are grinded or polished, Next, the glass comes into a tempering oven which heats the glass to a temperature of more than 600 degrees Celsius. The glass then undergoes a high-pressure cooling procedure called "quenching." And then high-pressure air blasts the surface of the glass in varying positions. Quenching cools the exterior surfaces of the glass much more quickly than the center. As the center of the glass cools, it tries to pull back from the exterior surfaces. As a result, the center remains in tension, and the exterior surfaces go into compression, which gives tempered glass its strength.



The Features of Tempered Glass

Strength

Tempered glass is significantly stronger than standard glass of the same thickness. It can withstand higher impact forces without breaking.

Safety

When tempered glass does break, it shatters into small, granular pieces instead of sharp shards, reducing the risk of injury.

Thermal resistance

Tempered glass has improved resistance to thermal stress, making it suitable for use in high-temperature environments.

Scratch resistance

Tempered glass is more resistant to scratches and surface damage compared to regular glass.



Specification



Product name

Tempered glass, Toughened glass, Tempered Safety Glass, Heat Strengthened Glass, Flat Tempered Glass

Thickness

3mm,4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm

Glass types

Clear, ultra clear(low iron), tinted, frosted, patterned/textured

Max size

3300x6000mm ,3300x8000, 3660x21000mm

Min. size

300x300mm

Mechanical Strength

Up to 5x stronger than annealed glass

Tensile Strength

65 MPa

Bending Strength

120-200 N/mm2

Surface Compression

>95 MPa

Fragmentation

Small pebbles

Fabrication

Cutting or drilling available before glass tempered, and tempered glass can be laminated, silk screen printed and back-painted.

Standard

China GB15763.3, Europe EN14449; ASTM C1172-SGCC,

Australia AS/NZS2208-CSI

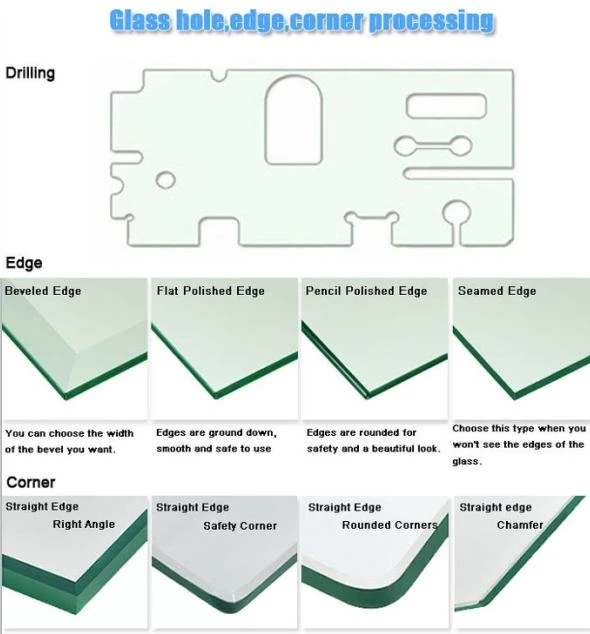

product-590-634

product-867-441



Application



1. Glass doors: Tempered glass is commonly used for exterior and interior doors in residential and commercial buildings due to its safety and durability.

2. Windows: It is used in windows to improve security, safety, and thermal insulation.

3. Shower enclosures: Tempered glass is a popular choice for shower doors and enclosures due to its safety features and resistance to water and humidity.

4. Glass railings: It is used for balustrades and railings in staircases, balconies, and terraces to provide safety without obstructing views.

5. Other typical applications of tempered glass include:

• Balcony doors

• Athletic facilities

• Swimming pools

• Facades

• Exhibition areas and displays

product-401-403
Shower enclosures
product-518-520
Fence and balustrades
product-400-400
Table tops
Factory Overview

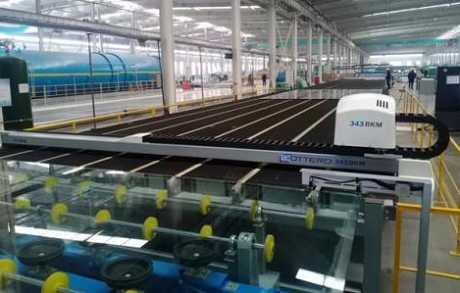

At likeway industry co.ltd , we specialize in crafting a diverse range of tempered glass solutions tailored to your project needs. Utilizing advanced tempering furnaces, cutting, drilling, polishing, and CNC machining capabilities, we ensure precision and excellence in every piece. Our team of skilled glass technicians and quality control experts diligently uphold the highest standards, ensuring that our factory-produced tempered glass consistently meets top-notch quality benchmarks.

product-460-293
product-460-293
product-460-293
Why Choose Us?



Customers choose our tempered glass manufacturing company for these key reasons:

1. High Quality: Our commitment to excellence runs through every production stage, ensuring top-tier materials and stringent quality control procedures for exceptional tempered glass products.

2. Advanced Technology: Equipped with cutting-edge technology like tempering furnaces, precision tools, and CNC machining capabilities, we exceed expectations by meeting the most demanding requirements.

3. Customized Solutions: Tailoring products to precise needs, we offer a wide array of customization options, from size and shape adjustments to incorporating special features for each unique project.

4. Timely Delivery: Prioritizing customer satisfaction, we guarantee prompt delivery through efficient production processes and streamlined logistics.

5. Competitive Pricing: While maintaining high standards, we provide cost-effective solutions by leveraging efficient operations and economies of scale without compromising quality.
